PE Jaw Crusher

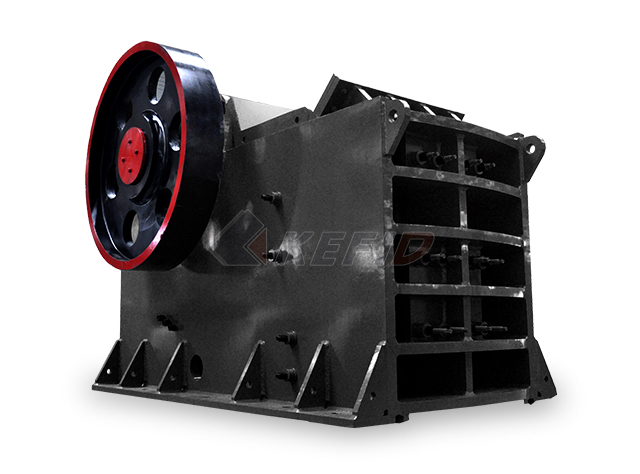

PE series jaw crusher is manufactured by our company, espacially designed for mines, quarries and other industrial applications, on the bases of previous experiences . They have completed specifications in different medels whose feeding size vary from 125mm to 1020mm. PE series jaw crusher is the first choice for primary crushing stage, for the material maximum compression strength 300Mpa.

  • FIXED JAW PLATES

    Material : ZG65Mn

    Function : Extruding material combined with movable plates.

  • MOVABLE JAW PLATE

    Material : ZG65Mn

    Function : Extruding material combined with movable plates.

  • UPPER, BOTTOM SIDE LINING PLATE

    Material : high manganese steel

    Function : The jaw crusher side lining plate is also called side guard plate, it consist of upper and bottom plate, it uses as to offer protection of the frame while the jaw crusher is working.

  • LEFT , RIGHT WEDGE BLOCK

    Material : cast steel 35

    Function : The wedge block is installed at the gap of the both sides of the crusher, it is used to adjust the discharge opening of the crusher, by pushing them closer, the toggle seat pushes to the toggle plate so the discharge opening gets smaller, if reverse, the discharge opening goes bigger.

FIXED JAW PLATES:

Changing process:

1. Lossen the fasteners(screws).

2. Disassemable side plate and press blocks.

3. Suspend the damaged plates out and Suspending the new one in the same position.

4. Assemmable pression blocks and side plate and fasten it(screws).

5. Adjusting the outlet range.

MOVABLE JAW PLATE

Changing process:

1. Lossen the fasteners(screws).

2. Disassemable side plate and press blocks.

3. Suspend the damaged plates out and Suspending the new one in the same position.

4. Assemmable pression blocks and side plate and fasten it(screws).

5. Adjusting the outlet range.

TOGGLE

Changing process:

1. Stop the machine and clean the material, check the damage parts.

2. Fixing movable plants and make it approching to fixed plate, and changing the damaged parts.

3. Adjusting movable plates to working status

SPRING

Changing process:

1. Stop the machine and clean the material, check the damage parts.

2. Fixing movable plants and make it approching to fixed plate, and changing the damaged parts.

3. Adjusting movable plates to working status.
