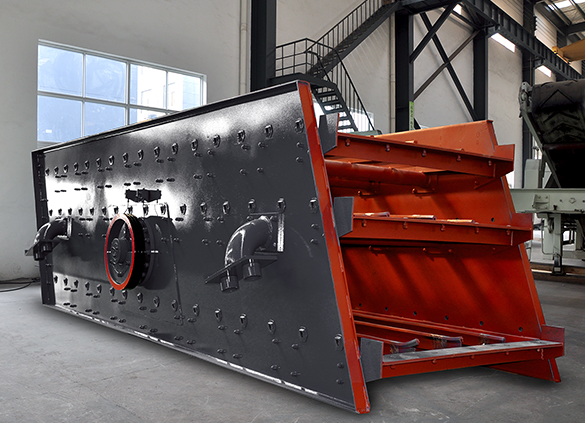

Vibrating Screen

Our company provides a great capability in the design and manufacture of vibrating screens for a wide range of duties. Vibrating screen is usually used to separate materials into various sizes for further processing. Vibrating screen also used as a supporting machine in stone crushing plant, or for end use, that depends on client's needing.

The mobile screen is now avaiable. Please contact us for more information.

More Pictures

Contact us online now to find the nearest Vibrating Screen Working site in your country, or Email us sales@kefid.com .

Get price and support ! Technical Parameter :

Model	Screen size (mm)	No. of Layer	Screen mesh (mm)	Max. feed size (mm)	Handling capacity (t/h)	Motor power (kW)	Vibrating frequency (r/min)	Double swing (mm)
2YZS1237	3700×1200	2	3-100	400	10-80	11	750-950	5-9
3YZS1237	3700×1200	3	3-100	400	10-80	11	750-950	5-9
2YZS1548	4800×1500	2	3-100	400	30-200	15	750-950	5-9
3YZS1548	4800×1500	3	3-100	400	30-200	15	750-950	5-9
2YZS1848	4800×1800	2	3-100	400	50-250	18.5	750-950	5-9
3YZS1848	4800×1800	3	3-100	400	50-250	18.5	750-950	5-9
4YZS1848	4800×1800	4	3-100	400	50-250	18.5	750-950	5-9
2YZS1860	6000×1800	2	3-100	400	65-586	22	750-950	5-9
3YZS1860	6000×1800	3	3-100	400	65-586	22	750-950	5-9
4YZS1860	6000×1800	4	3-100	400	65-586	30	750-950	5-9
2YZS2160	6000×2100	2	3-100	400	81-720	22	700-900	5-9
3YZS2160	6000×2100	3	3-100	400	81-720	30	700-900	5-9
4YZS2160	6000×2100	4	3-100	400	81-720	30	700-900	5-9
2YZS2460	6000×2400	2	3-150	400	100-810	30	700-900	5-9
3YZS2460	6000×2400	3	3-150	400	100-810	37	700-900	5-9
4YZS2460	6000×2400	4	3-150	400	100-810	37	700-900	5-9
